PUMPSET

request a quote

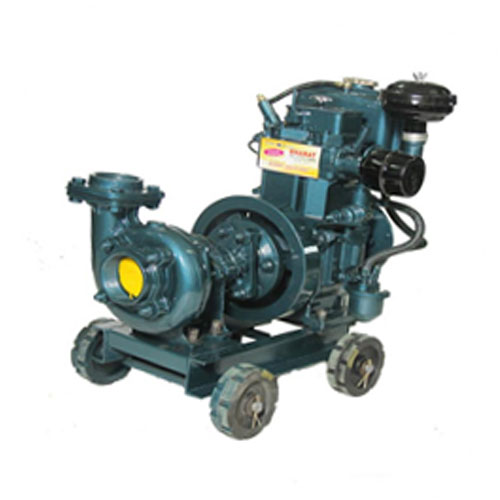

5H.P Pumpset (3x2.5, 4x4)
80mm / 85mm Bore
Speed 1500-2200 R.P.M

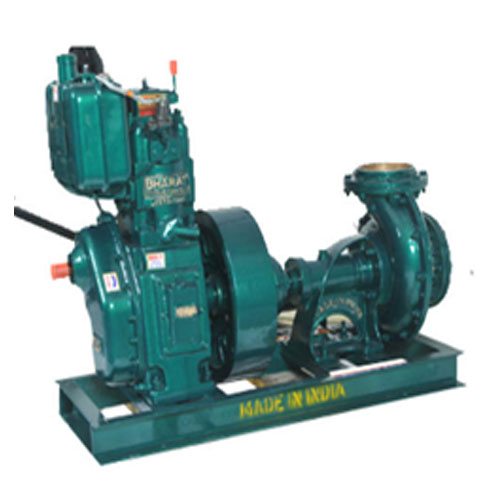

5H.P Monoblock (3x2.5, 4x4)
Light weight 100 Kg
Speed 1000 & 1500 R.P.M

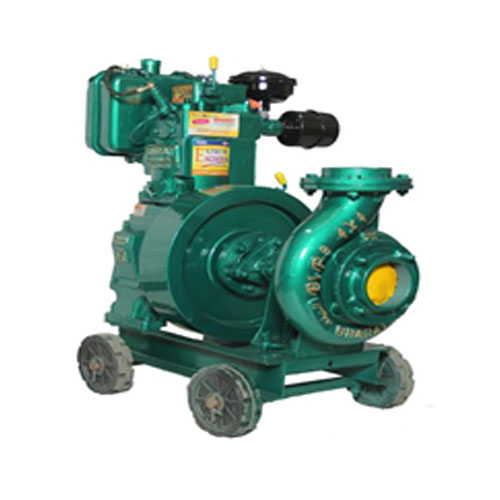

6.5H.P - 15H.P (3x3, 4x4, 6x6)
Single cylinder, High Head
water / Air Cooled


Diesel Engine Water Pumpset

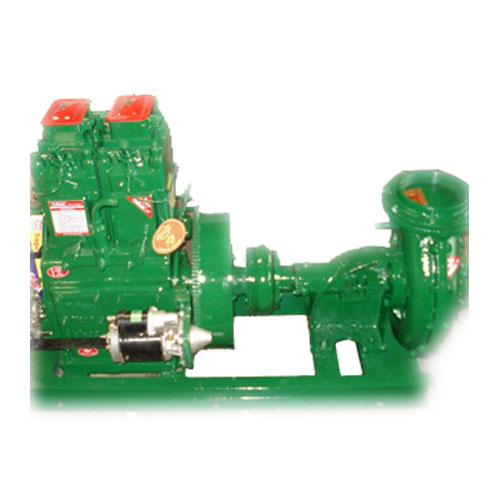

Double Cylinder Single Phase
20 H.P - 32 H.P (4x4,6x6,8x8,)
Water Cooled / Air Cooled

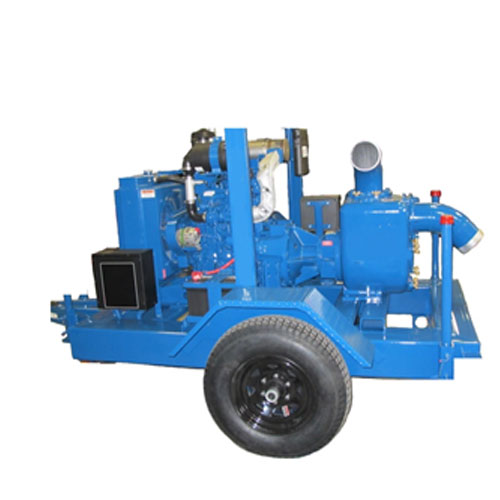

Diesel Engine Driven Water Pumpset Two Wheel Trolley Mounted
20 H.P - 52 H.P (4x4,6x6,8x8,)
Multicylinder , High Head
Water Cooled / Air Cooled

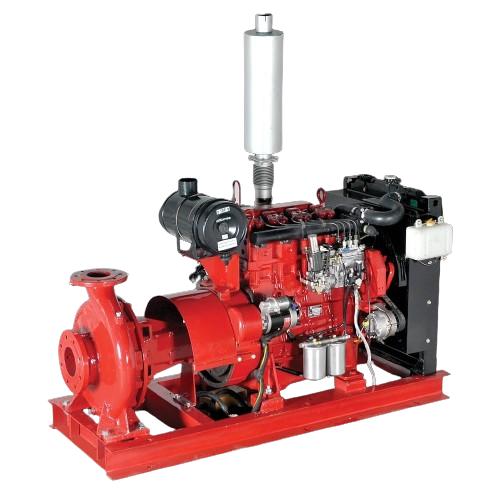

Diesel Engine Fire Fighting Pumpset 5 HP To 185 HP

DIESEL ENGINE H.P R.P.M BORE (mm) PUMP SIZE (mm) TYPE HEAD (Mtr.) HEAD RANGE DISCHARGE (L.p.s) DISCHARGE RANGE NET WEIGHT
(Kg) (With Trolley)
5 1600 85 80x65! Oil s 10 (8 5 - 11) 14(16-12) 140
6.5 1500 85 80x65! Oi I s. 15 (12.5 -16) 16.5 (19 -13) 200
8 1600 87 80x65 ! Oi I s. 11 (9.5 - 12) 40 (48 - 30) 250
10 1500 95 1 00X1 OO! Oil s. 16 (13.5 -17) 22 (32 -19) 270
12 1500 102 150x150 ! Oil s. 12(10-13) 45 (55 - 40) 365
14 1500 114 150x150 ! Oil s. 15(12-16) 48 (56 - 41) 370
16 800-1800 114 150x150! Oil s. 15(12-16) 48 (57 - 42) 380
20 1500 95 150x150 ! Oil s. 25 (20 - 26) 50 (60 - 43) 555
24 1500 102 150x150 ! Oil s. 26 (21 - 27) 52 (61 - 44) 565
28 1500 114 150x150 ! Oil s. 26 (21 - 27) 54 (63 - 46) 575


TECHNICAL DESCRIPTION :

  • Governing Class B1
  • RPM = 1500
  • Water Cooled / Air Cooled
  • Fuel Consumption = 184 gm/hp-hr


PRODUCT SPECIALITIES :

  • Excellence efficiency - High discharge rate consuming less diesel.
  • Extremely simple construction - Easy for maintenance.
  • Water supply to high rise building and housing complex.
  • Bearing housing - Sturdy and robust construction to give long continuous service - fitted with bronze bearing bush and ball bearing.
  • Highest suction lift - can suck water from depths as low as 9mtrs.
  • C.I components of higher grade - much higher mechanical strength.
  • Central delivery - No air release cock required - no need to go down in the well to release air.
  • No vibration.
  • Heavy (Flywheel/ Head/ Body/ Block).
  • No leakage.
  • 100% original spares.
  • Fitting is done through compressors.
  • Testing (3-4hrs.).
  • Long Life.
  • Availability of spares all throughout the globe.
